Technisches Datenblatt

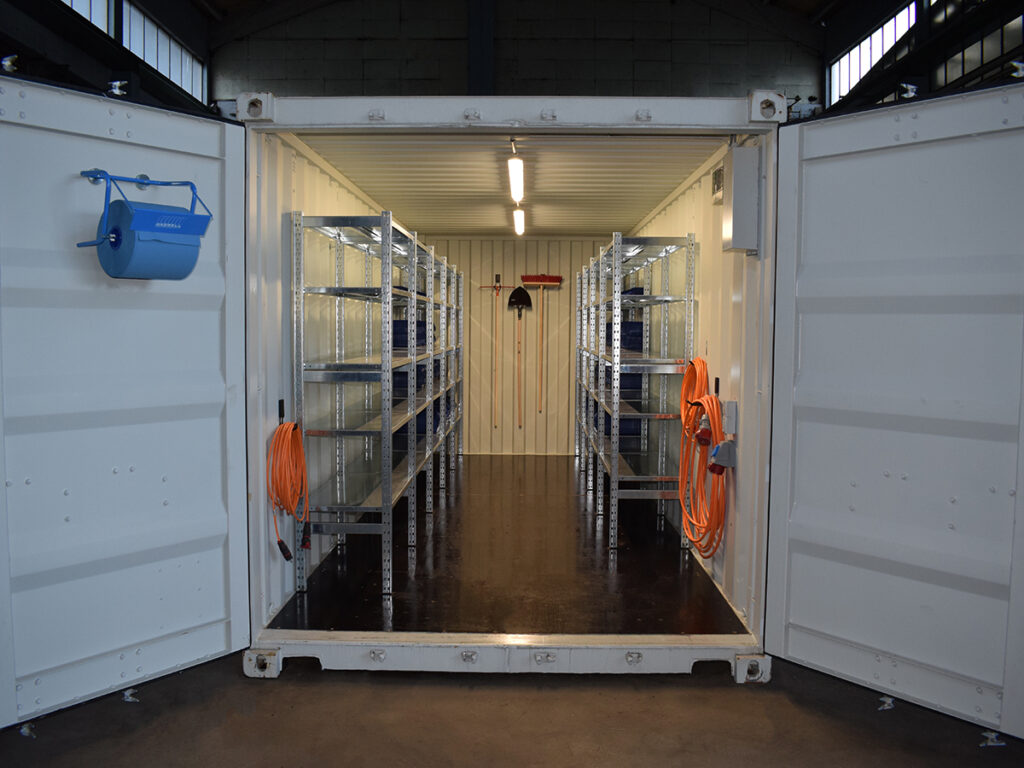

BASIC PLUS – Storage Container (One-Way)
Regalsystem, Ordnung & Elektrik
⚠️ Important Notice
Equipment, brands, quantities, and configuration may vary slightly depending on availability, customer requirements, and technical implementation. The respective offer is binding.
Shelving Systems
Schwerlastregale, verzinkt:
– Anzahl: 9 Stück
– Breite: 1.000 mm
– Tiefe: 500 mm
– Höhe: 2.000 mm
Fachböden, verzinkt – 5 Stück je Regal
Abmessung: 1.000 × 500 mm
Tragkraft: 150 kg pro Fachboden bei gleichmäßig verteilter Last
Size comparison
Bins / sorting boxes (blue)
| size 1 | size 2 | size 3 | size 4 |
| 72 units | 48 units | 30 units | 12 units |
| 165 x 105 x 75 mm | 235 x 145 x 125 mm | 335 x 205 x 150 mm | 480 x 305 x 180 mm |
Magnetic hooks
(max. wall load per unit: 20 kg)
1 × open, 4.5″
1 × closed, 4.5″
1 × open, 3″
1 × closed, 3″
1 × open, 6″
1 × closed, 6″
Lighting – LED industrial light
Type of luminaire: ceiling light / Studio Lumen
Total luminous flux: 8,100 lm
Light color: 4,000 K (neutral white)
Protection rating: IP65 (dust-tight and protected against water jets)
Light source: LED, included
Energy efficiency class: D
Mains voltage / operating voltage: 220–240 V, 50/60 Hz
Housing & cover
Housing material: plastic
Housing color: grey
Cover: plastic
Cover color: white
Dimensions & weight
Length: 1,520 mm
Width: 85 mm
Height: 80 mm
Net weight: approx. 1.70 kg
Electrical system & power distribution
Kleinverteiler
Teilungseinheiten: 12
PE/N terminal: 2 terminal points 16 mm² 10 terminal points 6 mm²
Entries:
8 elastic entries on top
additional double membrane nozzles
Equipment:
– cover and labeling strips
– insulating plugs
Technical Data
Dimensions:
Width: 250 mm
Length: 200 mm
Height: 122 mm
Internal height: 95 mm
Protection rating: IP65 according to EN 60529 / DIN VDE 0470-1
Impact resistance: IK07 according to DIN EN 5012
Protection & Switching Devices
RCD (Residual Current Device):
Brand: Schrack PXF-40/4/003A
Rated current: 40 A
Number of poles: 4-pole
Tripping current: 30 mA
Type: A
Mounting: DIN rail (REG)
Frequency: 50 Hz
Miniature circuit breaker:
Schrack PXL-C16/3+N:
16 A, 3-pole
C characteristic
Schrack
16 A, 1+N, 1 module width (1TE)
C characteristic
Switch / socket combination
SCHUKO socket with hinged cover
Design: surface-mounted, W.1 series
Color: grey / light grey matte
CEE wall socket (depending on configuration)
PCE 115-6: 16 A, 5-pin or PCE 125-6: 32 A, 5-pin
Wiring
– NYM-J 3×1.5 mm², grey
– Outer diameter approx. 9.0 mm
– NYM-J 5×1.5 mm², grey
